- 4K 60 Hz video resolution support for crystal-clear images
- Supports advanced audio formats including Dolby Atmos and DTS:X
- Transmits signals up to 70 m over CAT cables, ideal for large venues
- Includes ESD protection for enhanced durability
- Features USB Pass-Through for connecting multiple devices

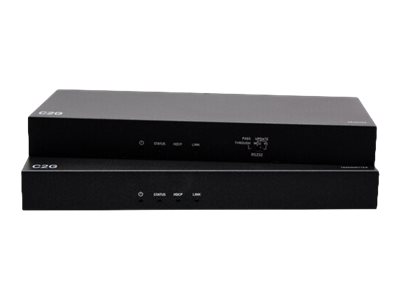

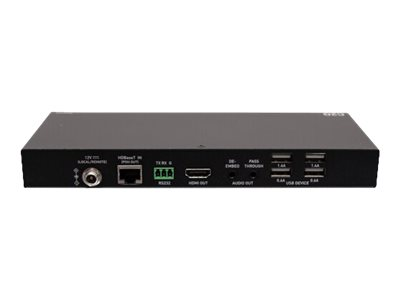

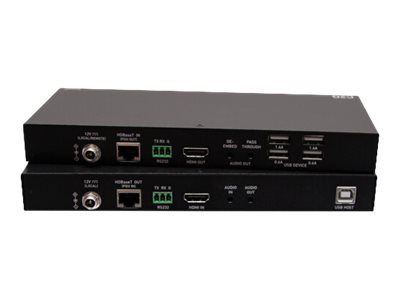

The HDMI HDBaseT + 3.5 mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60 Hz allows a 4K HDMI source to be extended up to 130 feet to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installations needs that are far beyond the length limitations of standard HDMI cabling.
The transmitter extends HDMI and high-speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. One-way analog audio pass through is supported from the transmitter to the receiver. High speed USB 2.0 pass through is supported over HDBaseT up to 230 feet for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the transmitter sends power to both, the transmitter and the receiver, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232 port.
