| Allmänt |
| Kapacitet | 64 GB |
| Uppgraderingstyp | Systemspecifik |
| Artikelnummer motsvarande OEM-nummer | Cisco UCS-MR-X64G4RS-H |
| Bredd | 133 mm |
| Djup | 3.98 mm |
| Höjd | 31.3 mm |
| Minne |

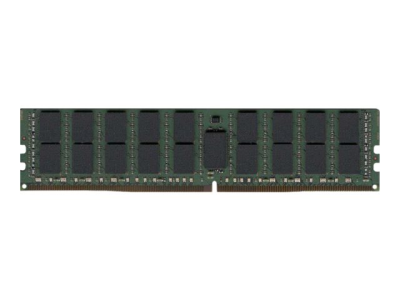

| Typ | DRAM minnesmodul |
| Teknik | DDR4 SDRAM |
| Formfaktor | DIMM 288-pin |
| Höjd modul (tum) | 1.23 |
| Hastighet | 2666 MHz (PC4-21300) |
| Åtkomsttidstiming | CL22 |
| Data Integrity Check | ECC |
| Egenskaper | Fyra rader, Through Silicon Via (TSV)-teknologi, registrerad |
| Chips-organisering | X4 |
| Spänning | 1.2 V |
| Diverse |
| Standarder som följs | RoHS, JEDEC |
| Tillverkarens garanti |
| Service och support | Begränsad livstidsgaranti |
| Kompatibilitetsinformation |
| Designat för | Cisco UCS B480 M5 Blade Server, C125 M5, C220 M5 LFF, C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C240 M5L Rack Server for Microsoft Azure Stack, C480 M5 Standard Base Chassis, C480 ML M5, SmartPlay Select B200 M5 (Not sold standalone), SmartPlay Select B200 M5 Advanced 3, SmartPlay Select B200 M5 Advanced 4 (Tracer), SmartPlay Select B200 M5 Basic 1, SmartPlay Select B200 M5 Basic 1 (Tracer), SmartPlay Select B200 M5 High Frequency 2, SmartPlay Select B200 M5 High Frequency 3, SmartPlay Select B200 M5 High Frequency 3 (Tracer), SmartPlay Select B200 M5 Standard 1 (Tracer), SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6 |
|
